Rob Allen 1200 Caranx

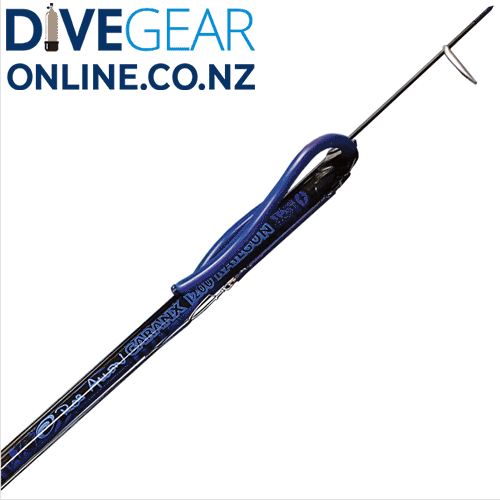

The Rob Allen Caranx 1200 Railgun.

The best all round Rob Allen speargun for spearfishing in New Zealand.

The Caranx speargun features an aircraft grade aluminium barrel with a full length extruded rail.  Because the rail is actually extruded it adds huge stiffness and strength helping to make Rob Allen guns the most accurate in the world.

The Caranx Speargun is equipped with the latest Vecta handle and mechanism.  The entire handle and mechanism cassette is made of glass reinforced polyamide giving it unequaled strength.

The join where the handle meets the barrel is critical as any weakness here can be a saftey issue and any movement will drastically affect accuracy.  The Rob Allen handle consists of a webbed internal spigot that is further reinforced by external shrouds totally eliminating any flex at this critical junction.

The handle has an integrated reel bracket so the Rob Allen Vecta reel can be mounted without needing any screws and is shaped to prevent any chance of the shooting line catching when a reel is not fitted.

The Vecta grip is moulded of rubber and is held in place by two cheek plates to prevent twisting.  There is an extra strong through bolt fitted at the base of the handle for extra strength where the floatline will be attached and the Vecta handle comes with a swivel and shark clip already attached.

The Vecta mechanism features a mechanical line release.  The sear is laser cut out of solid stainless steel and all pivot pins are made of stainless steel for strength under high loads.

Rob Allen Low-Profile Vecta muzzle:

Low-profile muzzle makes for extremely low drag through the water.

A very clear sight pattern along the spear which is usually only achieved with open-muzzle designs.

Two rubbers are clipped into place preventing 'muzzle flip' when fired.  The shape of the muzzle guides the rubber in a straight line, parallel with the barrel and spear.
The Vecta muzzle is constructed of extremely tough glass reinforced polyamide and the critical muzzle-barrel interface consists of an extra long internal spigot with external shrouds.
The muzzle hole attachment point has been shaped to accept an optional stainless steel shackle recommended when a reel has been fitted.

Rob Allen spears are constructed of extremely high tensile spring steel that has been tempered to an incredible 2100mpa.

They are fitted with an over-sized stainless steel flopper on the bottom of the spear that has been perfectly hand-tuned to flop easily the first 40 degrees and then jam open.  The flopper is held on by a stainless spring steel pin for maximum flopper retention.

The shooting line hole and notches have been precision cut and perfectly finished to never damage either your shooting line or wishbones.

The Caranx comes with a 7mm double notched shaft with a 40cm overhang (the difference between length of barrel and length of shaft).
The spear is attached to the muzzle via a single wrap of 2mm monofilament and a 10cm gun bungee.

The Caranx comes fitted with a single 20mm rubber with a dynema wishbone.
